View 3D and photosRod ends, imported and stocked in Mumbai.
Rod ends join a push or pull rod to a moving part and let the joint swing freely. We supply them in male and female thread versions for cylinders, linkages and machinery that needs angular movement.

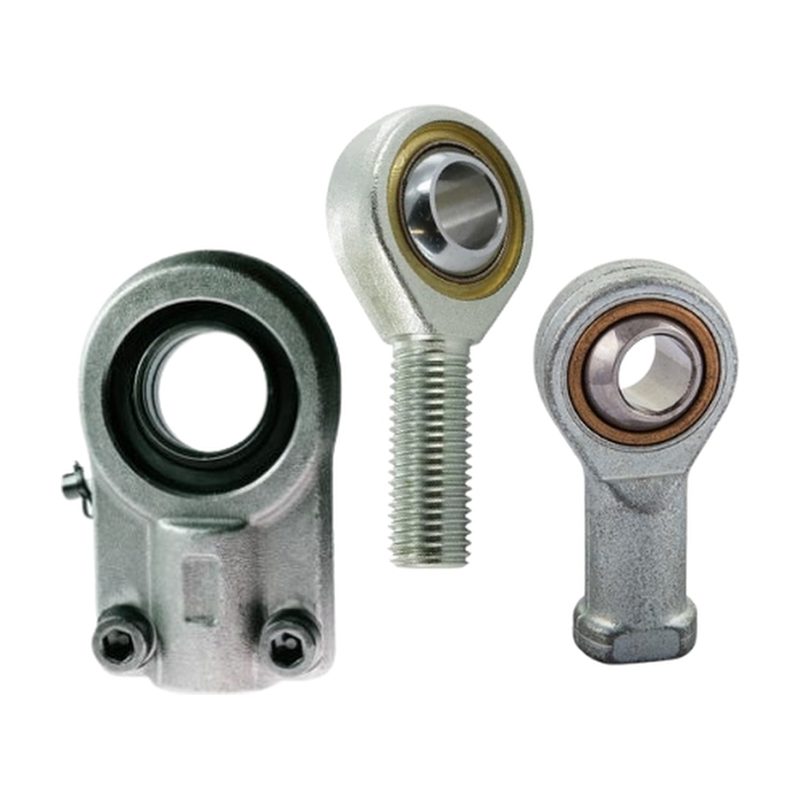

Rod ends
Built to connect and pivot.
Rod ends pair a spherical bearing with a threaded shank, so a push or pull rod can swing freely at the joint. They are widely used in linkages, hydraulic and pneumatic cylinders, steering and suspension setups and machinery that needs angular movement.
Ask for priceWhat are rod ends?
A rod end, sometimes called a heim joint, combines a spherical bearing with a threaded shank. The shank screws onto a rod, and the bearing end bolts to a pin or bracket. The joint can swing and tilt, which removes the stress that a rigid joint would pass on to the rod.
Rod ends come with an internal thread (female) or an external thread (male), and in right hand or left hand threads. The bearing inside can be steel on steel or lined with a self lubricating liner.
Types we supply.
Female thread rod ends
- Internal thread, screws onto a threaded rod or shaft.
Male thread rod ends
- External thread, screws into a tapped hole.
Right hand and left hand threads
- Used together so a rod length can be adjusted without removing the joints.
PTFE lined and steel on steel
- Self lubricating liner, or lubricated steel, to suit the load and upkeep.
Where it is used.
- Pneumatic and hydraulic cylinders
- Linkages and control rods
- Steering and suspension setups
- Automation equipment
- Agricultural and construction machinery
What to send us for a quote.
To quote rod ends quickly, send us: the rod end number or markings; or the bore, thread size and thread type; male or female, and right or left hand; a photo if you are matching an existing part.
How an order works
1
Send the part number, a photo or the old bearing by WhatsApp, call or the form below.
2
We confirm the match and send a quote, usually within a few hours.
3
Collect from our office or have it delivered. Within Mumbai we aim for same or next day, depending on stock and the time you order. Across India we dispatch by your preferred transporter or courier.
Questions we hear every day.
How do I choose between male and female thread?
Match it to what it connects to. Use a female rod end on a threaded rod. Use a male rod end where it screws into a tapped hole.
Why would I need a left hand thread?
A right hand rod end on one end and a left hand on the other lets you adjust the rod length by turning the rod, without disconnecting either joint.
PTFE lined or steel on steel?
PTFE lined needs no regular lubrication and suits joints that are hard to reach. Steel on steel suits heavy or shock loads where you can grease.
What do I measure to order?
The bore diameter, the thread size and pitch, and whether the thread is male or female. A photo of the old part helps.
