View 3D and photosAngular contact bearings, imported and stocked in Mumbai.
Angular contact bearings take radial and axial loads together, which makes them the standard choice for precision spindles, pumps and screw drives. We can help you identify the exact series, contact angle and pairing.
Angular contact bearings
Built for combined loads and precision.

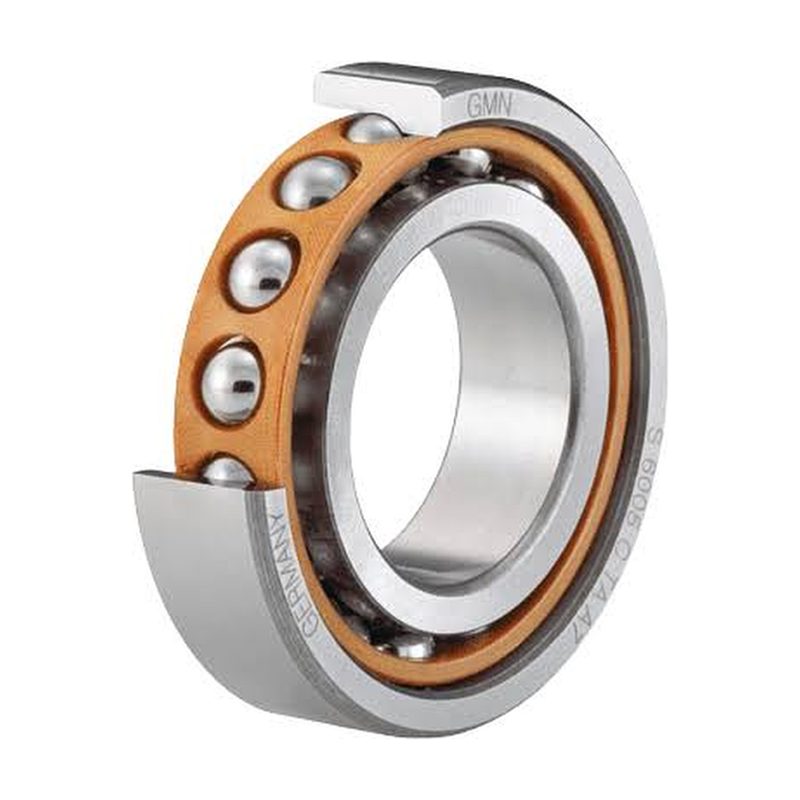

Angular contact bearings are designed with their raceways positioned at an angle, allowing them to accommodate both radial and axial loads. They're commonly used in high-speed and precision applications such as machine tools, pumps and screw drives.
Ask for priceWhat are angular contact bearings?
In an angular contact bearing the raceways are offset, so the line of force between the ball and the rings is at an angle. This lets the bearing carry load across the shaft and along it at the same time, and to run at high speed with little play.

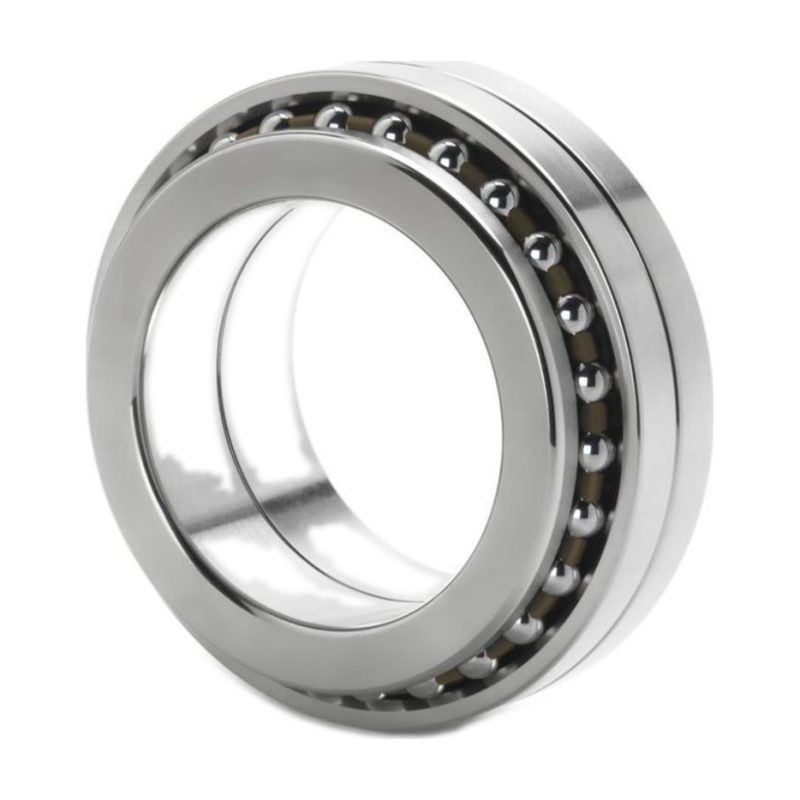

A single row bearing carries axial load in one direction only, so these bearings are often fitted in pairs or sets, arranged back to back, face to face or in tandem. Matched sets are ground so that they share the load correctly.
Types we supply.
Single row angular contact bearings
- Common 7200 and 7300 series, with contact angles such as 15, 25 and 40 degrees.
Double row angular contact bearings
- Two rows in one bearing, for load in both directions.
Matched pairs and sets
- Back to back, face to face and tandem arrangements.
Four point contact bearings
- Carry axial load in both directions.
Where it is used.
- Machine tool spindles
- Pumps
- Ball screw supports and screw drives
- Gearboxes
- High speed and precision machinery
What to send us for a quote.
To quote angular contact bearings quickly, send us: the bearing number, including the suffix that gives the contact angle; single, paired or a set, and the arrangement; open or sealed, and the cage type if known; where it is used, such as a spindle or a screw drive.
How an order works
1
Send the part number, a photo or the old bearing by WhatsApp, call or the form below.
2
We confirm the match and send a quote, usually within a few hours.
3
Collect from our office or have it delivered. Within Mumbai we aim for same or next day, depending on stock and the time you order. Across India we dispatch by your preferred transporter or courier.
Questions we hear every day.
What is the contact angle?
It is the angle of the force line between the ball and the raceway. A larger angle carries more axial load, while a smaller angle suits higher speed.
Why are angular contact bearings used in pairs?
A single bearing carries axial load in one direction only. A pair or set carries it in both directions and adds stiffness.
Can I replace one bearing of a pair?
Usually the whole matched set should be replaced, because the bearings are ground to work together. Send us the markings and we will advise.
Can you match a bearing from the part number?
Yes. Send the full number from the ring, including suffixes, and we will confirm the match.
